| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | Sinolift |
| Certification: | CE, ISO9001 |
| Numéro de modèle: | ML150 |
| Quantité de commande min: | 1 ensemble |
| Prix: | Négociable |
| Détails d'emballage: | Paquet d'exportation de Sandard |
| Délai de livraison: | 15 jours |
| Conditions de paiement: | LC, T/T, Western Union |
| Capacité d'approvisionnement: | 1000 ensembles/bouche |
| Nom du produit: | Chariots et remorqueurs ML100 ML150 ML200 1 tonne, capacité de 1,5 tonne | Alimentation: | Électrique |
|---|---|---|---|
| Type de fonctionnement: | Style de marche | Poids de la batterie: | 15KG |
| Type de pneu, roue motrice/roue de support: | Rubber/PU | Hauteur hors tout: | 1075mm |
| Hauteur de crochet: | 170/290mm | Vitesse d'entraînement chargement/déchargement: | 3~4km/h |
| Chargement/déchargement maximal en pente: | 5% | Chargeur (externe): | 24/10V/A |
| Service après-vente fourni: | Support technique visuel, pièces de rechange libres | Garantie: | 1 an |
Product Name:

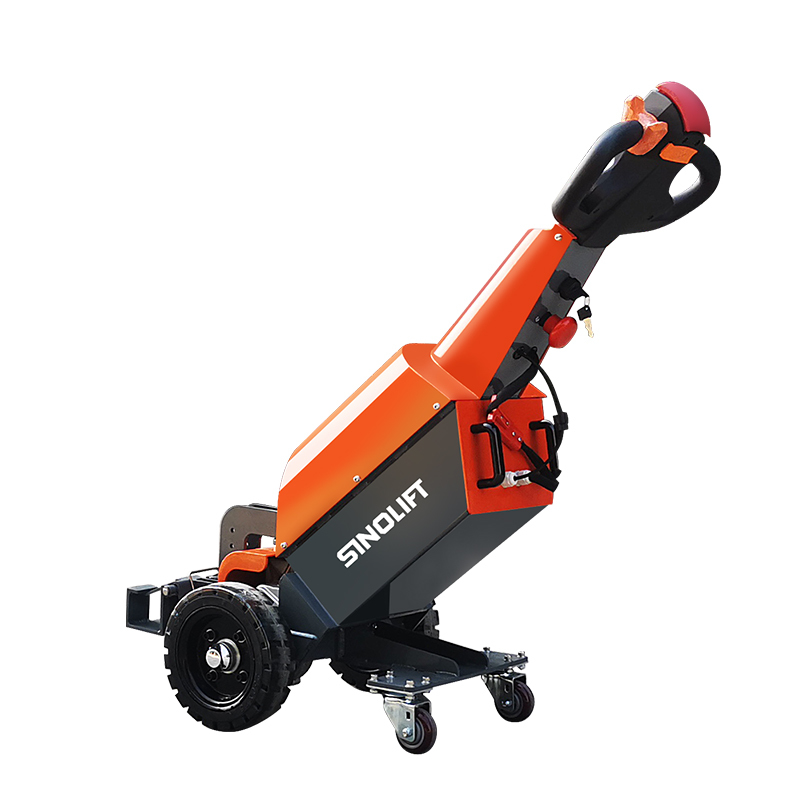

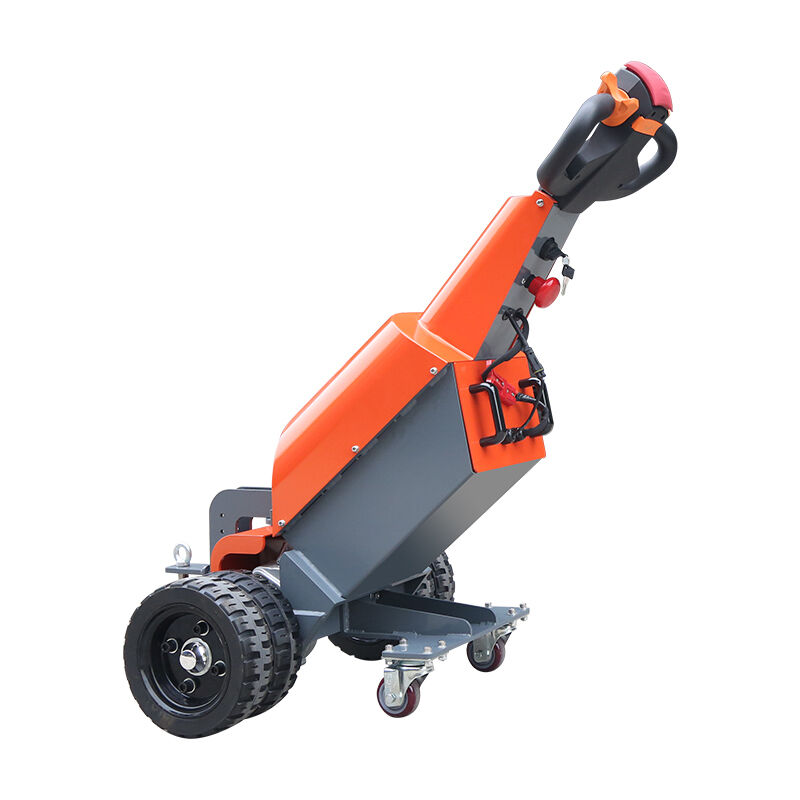

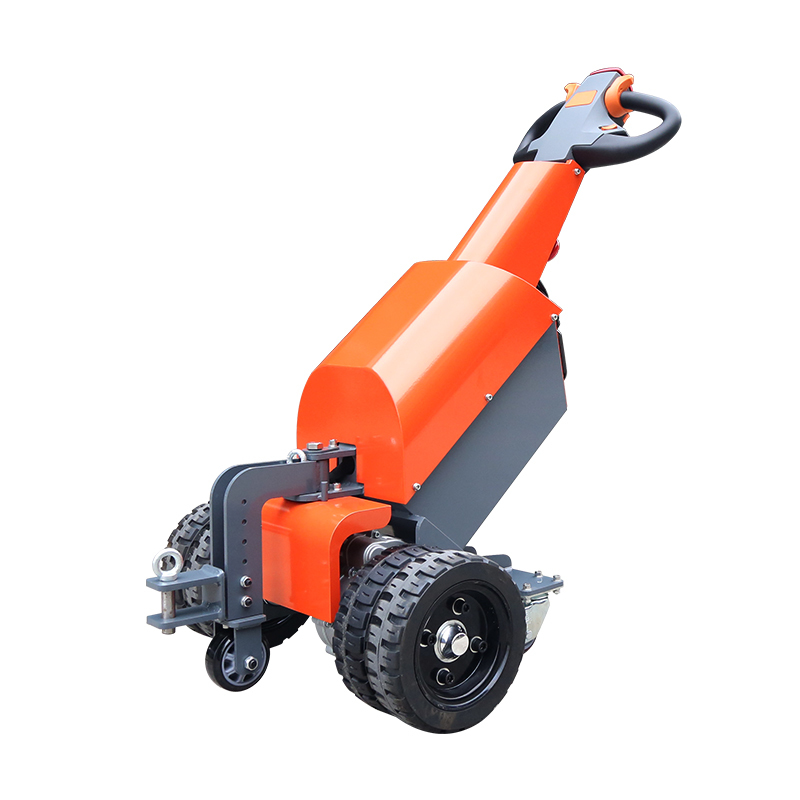

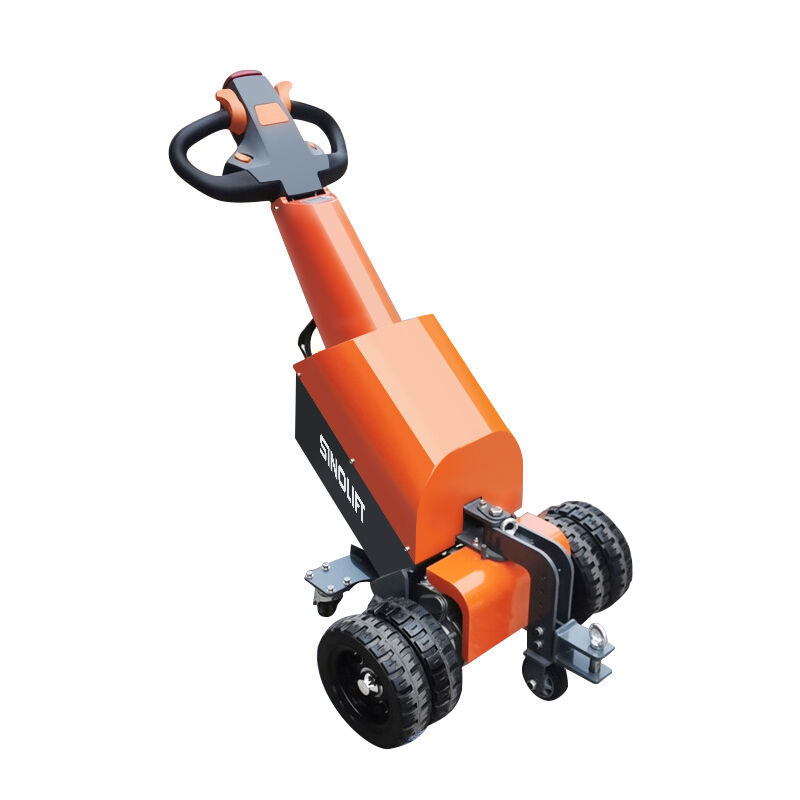

ML100 ML150 ML200 Carts and Tuggers 1ton 1.5 Ton Capacity
Product Overview:
Unique ergonomic handle design adjusts to a wide range of user heights. Award-winning control design provides the user with variable speed forward and reverse control from 0 to 4 kmper hour, power on/off switch, color battery charge level indicator, automatic sleep mode to conserve battery power when not in use, emergency stop button, and home. Front mounting plate accommodates a wide range ofstandard and custom hitches.
Product Specifications:
| Model | ML100 | ML150 | |
| Power supply | Electric | Electric | |
| Operating type | Walking style | Walking style | |
| Max traction weight | kg | 1000 | 1500 |
| Rated pulling force | N | 300 | 500 |
| Truck weight(with battery) | kg | 105 | 115 |
| Battery weight | kg | 15 | 15 |
| Tire type, Drive wheel/Supporting wheel | Rubber/PU | Rubber/PU | |
| Overall height | mm | 1075 | 1075 |
| Height of tiller in drive position | mm | 1010 | 1010 |
| Hook height | mm | 170/290 | 170/290 |
| Overall length | mm | 1080 | 1080 |
| Overall width | mm | 510 | 680 |
| Ground clearance | mm | 100 | 100 |
| Turning radius | mm | 780 | 800 |
| Drive speed load/unload | km/h | 3～4 | 3～4 |
| Rated pulling force | N | 300 | 500 |
| Max pulling force | N | 500 | 750 |
| Max gradeability load/unload | % | 5 | 5 |
| Drive motor rating S2 60min | kw | 0.8 | 1.0 |
| Charger (external) | V/A | 24/10 | 24/10 |
