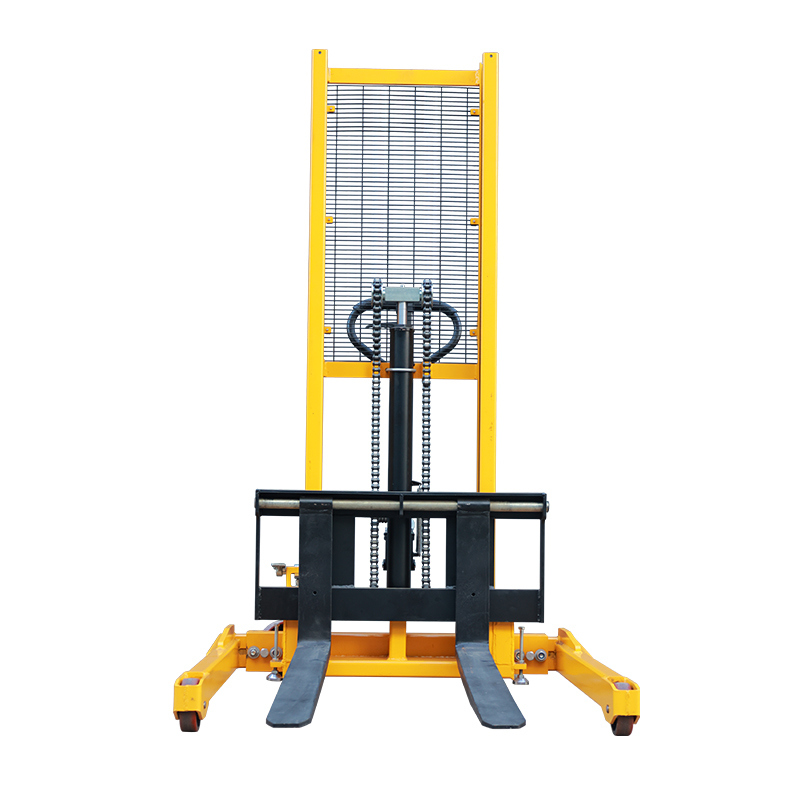

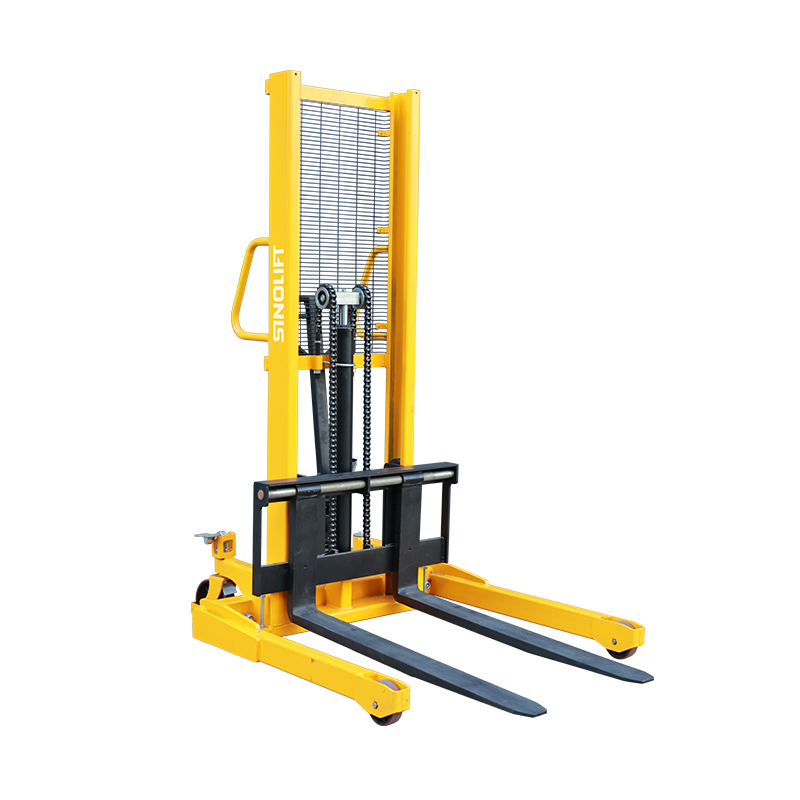

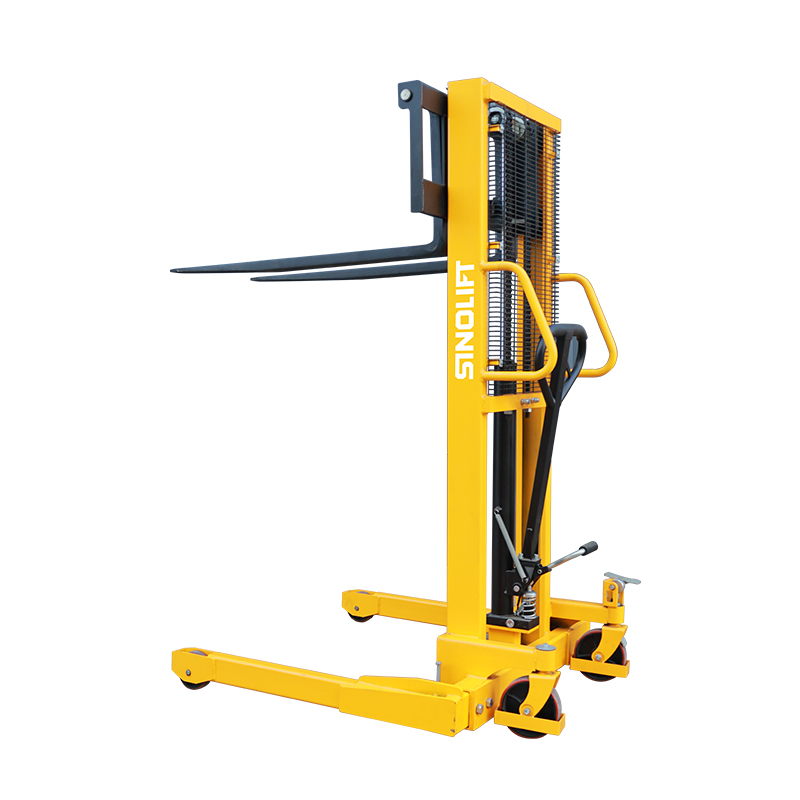

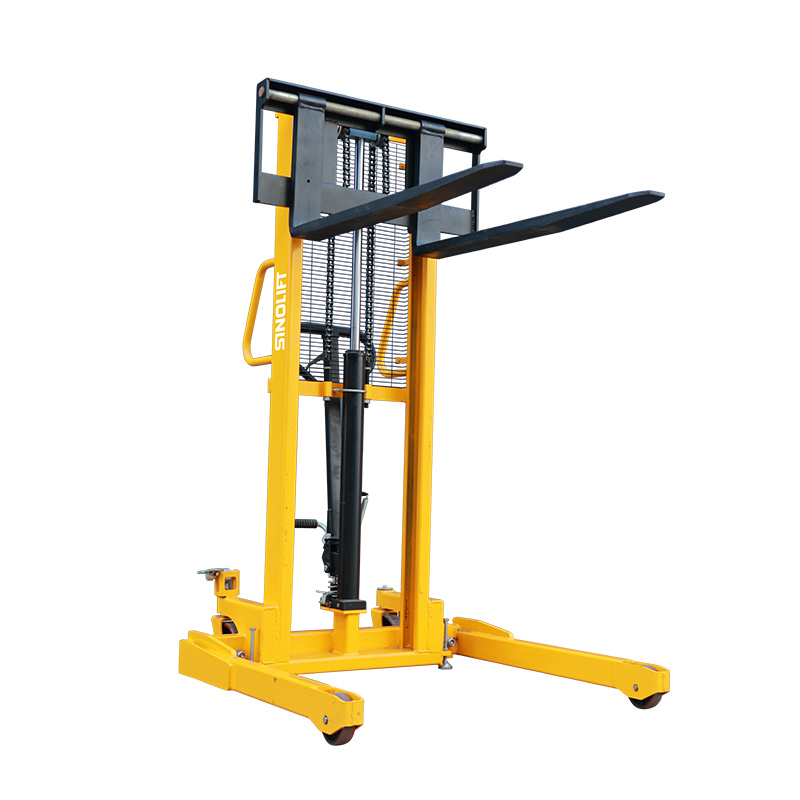

Name: SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
Brand: Shanghai Sinolift Mechanical and Electrical Equipment Co., Ltd.
SKU: SFH22AG
Availability: InStock

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs

Informations de base

Lieu d'origine:	CHINE
Nom de marque:	SINOLIFT
Certification:	CE
Numéro de modèle:	SFH22AG

Quantité de commande min:	1 set
Prix:	Négociable
Détails d'emballage:	Paquet d'exportation de Sandard
Délai de livraison:	15 jours
Conditions de paiement:	L / C, D / A, D / P, T / T, Western Union
Capacité d'approvisionnement:	1000 ensembles/bouche

Contactez

Nom de produit:

Empiler hydraulique manuel du manuel SFH22AG avec des jambes à cheval réglables

Style de conduite:

piéton

Capacité de chargement:

1000 kg

Poids net:

386 kg

Garantie:

1 an

Après le service:

Service en ligne, pièces de rechange gratuites

Product Name

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs

This Manual Hydraulic Stacker delivers 1000 kg of robust lifting with a reinforced steel construction and export-grade durability. Its adjustable straddle legs adapt to diverse pallet types, while the compact design excels in narrow aisles and warehouses. Ideal for manufacturing, logistics, and storage facilities seeking efficient, space-saving material handling.

Key Features of SFH22AG Manual Hydraulic Stacker:

Heavy-Duty Construction: Built with 6-8mm reinforced steel and a straddle leg design for maximum stability and long-term durability under heavy loads.
High Lifting Performance: Equipped with a sealed hydraulic cylinder and dual reinforcement chains, enabling smooth and reliable lifting up to 3 meters.
Excellent Adaptability: Features width-adjustable forged forks (215–850mm) compatible with various pallet types, including stringer, double-face, and nine-leg pallets.

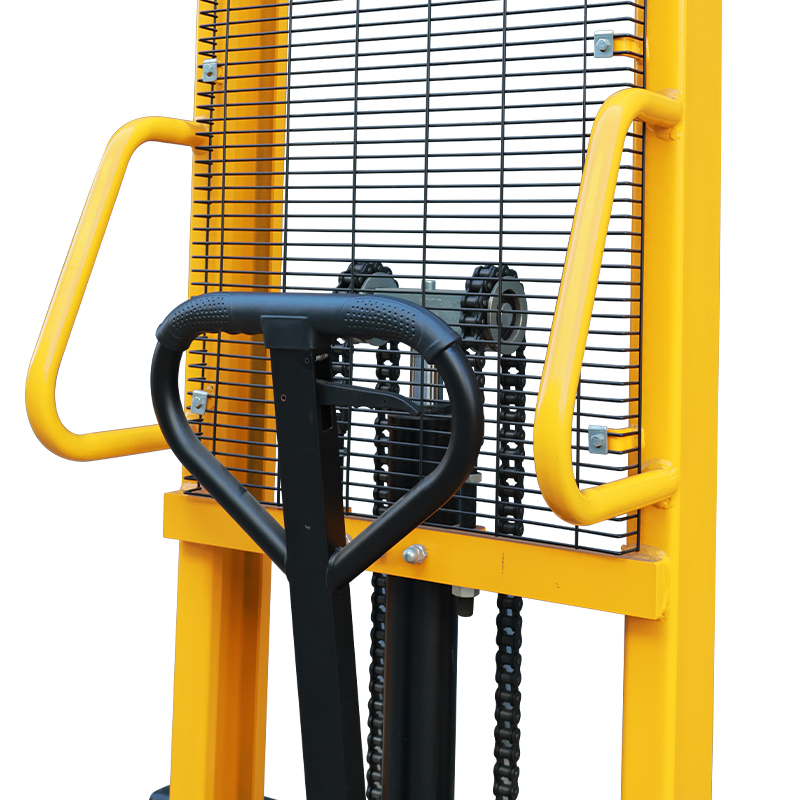

Operator-Friendly Design: Includes an ergonomic handle, foot pedal lifting, and PU swivel casters with a foot brake for effortless and safe operation.
Enhanced Safety: Designed with a protective mesh guard, anti-leak cylinder, and robust C-type steel mast to ensure safety in diverse working environments.

Product Specifications

SFH Series - Straddle Leg Stacker
Model		SFH22-63	SFH22-98	SFH22-118
Load Capacity	kg	1000	1000	1000
Load Center Distance	mm	500	500	500
Max Lifting Height	mm	1600	2500	3000
Mast Type		1	2	2
Lowered Height	mm	70	70	70
Fork Length	mm	920	920	920
Single Fork Width	mm	100	100	100
Adjustable Fork Width	mm	215~850	215~850	215~850
Inner Leg Width	mm	915~1220	915~1220	915~1220
Outer Leg Width	mm	1090~1370	1090~1370	1090~1370
Overall Length	mm	1420	1420	1420
Overall Width	mm	1370	1370	1370
Overall Height	mm	2020	1770	2020
Front Wheels	mm	Φ125x50	Φ125x50	Φ125x50
Rear Wheels	mm	Φ180x50	Φ180x50	Φ180x50
Net Weight	kg	320	360	386
