| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | SINOLIFT |
| Certification: | CE, ISO9001 |
| Numéro de modèle: | QDA15EL03 |
| Quantité de commande min: | 1 ensemble |
| Prix: | Négociable |
| Détails d'emballage: | Paquet d'exportation de Sandard |
| Délai de livraison: | 15 jours |
| Conditions de paiement: | L / c, d / a, d / p, t / t |
| Capacité d'approvisionnement: | 55 unités |
| Nom du produit: | Modèle QDA15EL03 Empileur entièrement électrique à pied de capacité élevée de 1,5 tonnes | Type de conduite: | Marche |
|---|---|---|---|
| Capacité de chargement nominale: | 1500 kg | Distance centrale de charge: | 500mm |
| Empattement: | 1168mm | Type de roue, roues motrices/chargeuses: | Polyuréthane |
| Hauteur de levage: | 1600/2500/3000/3500mm | Durée globale: | 1690 mm |
| Taille de la fourche (L×W×T): | 60×150×1070mm | Rayon de virage: | 1363mm |
| Garantie: | 1 an | Après le service: | Service en ligne, pièces de rechange gratuites |
Product Name

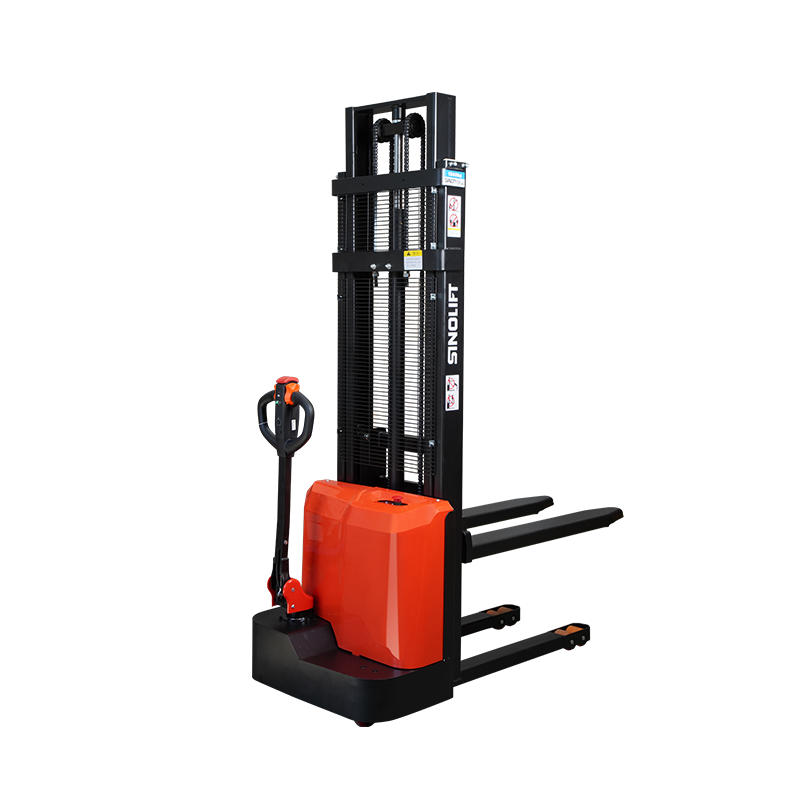

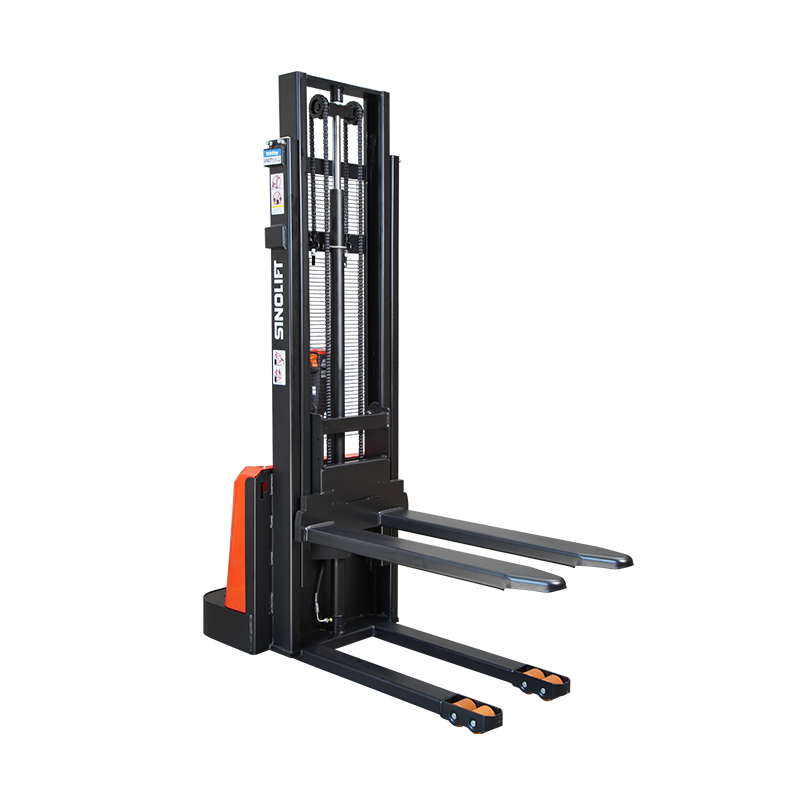

Model QDA15EL03 1.5 Ton Strong Capacity Walkie Fully Electric Stacker
Product Description
The Model QDA15EL03 is a robust and versatile 1.5-ton fully electric walkie stacker, designed to handle heavy loads with ease while ensuring lightweight and user-friendly operation. Built with high-quality materials and intelligent features, it delivers powerful performance across diverse working conditions, making it an ideal solution for warehouse storage, supermarket stocking, and various industrial applications. Its ergonomic design and advanced electro-hydraulic system enable effortless lifting and improved productivity, all while maintaining safety and durability.
Key Features

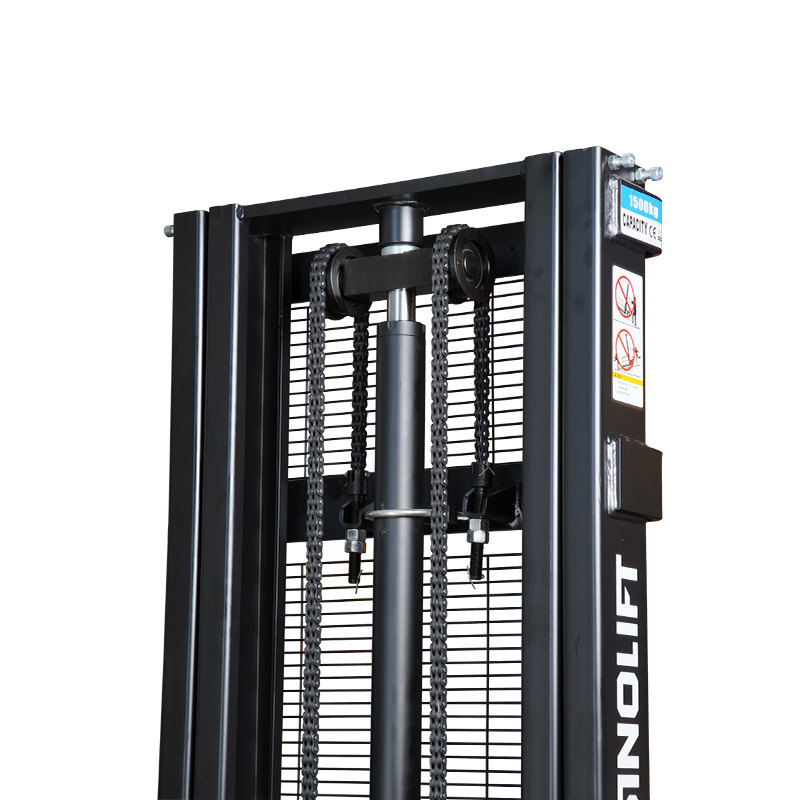

1. High-Quality Steel Construction: Reinforced and thickened two-stage mast, 10mm thickened C-section steel frame for enhanced safety and deformation resistance.
2. Optimized Lifting Performance: 1.6-meter lifting height with a single-stage mast, supported by a sealed large oil cylinder and reinforced dual drive chains for powerful, stable lifting.

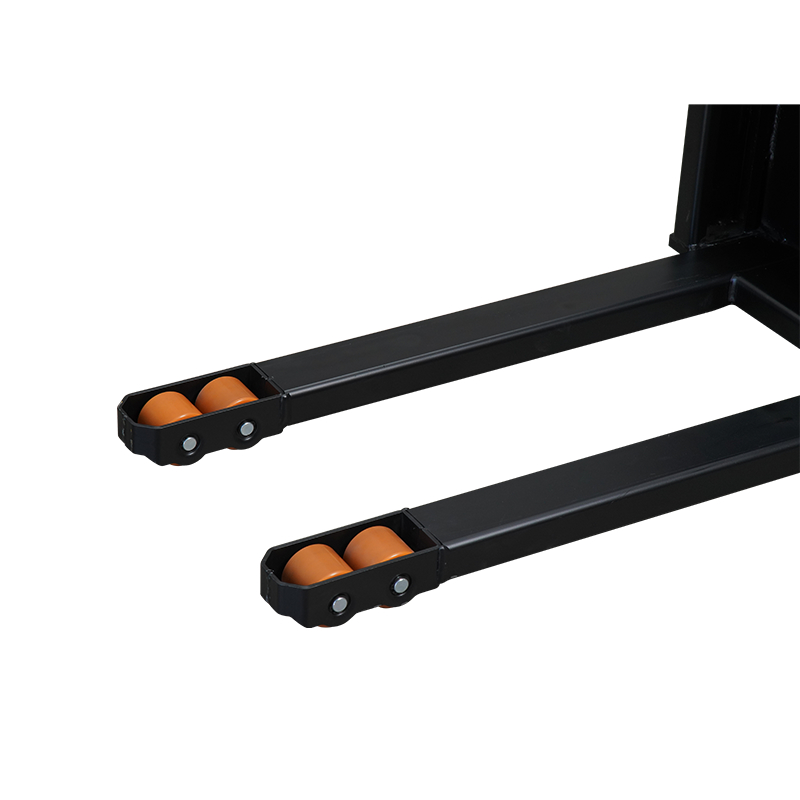

3. Lap-Over Fork Design: Thickened and reinforced fork with stabilizing ribs and reinforcement plates at the base to prevent deformation under heavy loads.

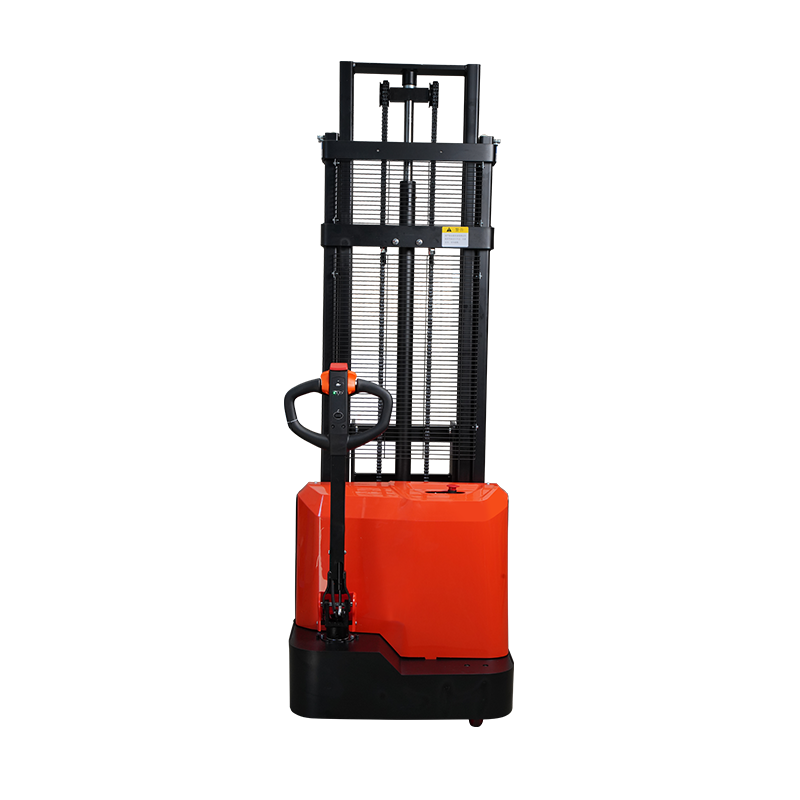

4. Intelligent Ergonomic Handle: Multi-functional control with forward/reverse, lift/lower, horn, and emergency reverse buttons for safe, one-handed operation.
5. Electro-Hydraulic Lifting System: Electric lifting and unloading for effortless operation, saving time and improving work efficiency.
Applications
Product Specifications
| Model | QDA15EL03 | |
| Driving Type | Walking | |
| Rated Load Capacity | kg | 1500 |
| Load Center Distance | mm | 500 |
| Front Overhang | mm | 726 |
| Wheelbase | mm | 1168 |
| Service Weight (with battery) | kg | 420 |
| Wheel Type, Drive / Load Wheels | Polyurethane | |
| Drive Wheel Size (Diameter × Width) | mm | Φ210×75 |
| Load Wheel Size (Diameter × Width) | mm | Φ80×70 |
| Number of Wheels, X = Drive Wheels | 1×+2 | |
| Track Width, Drive / Load Wheels | mm | 526 / 411 |
| Tread, Drive Wheel | mm | 491 |
| Mast Lowered Height | mm | 2080 / 1840 / 2090 / 2340 |
| Lifting Height | mm | 1600 / 2500 / 3000 / 3500 |
| Mast Extended Height (with Load Backrest) | mm | 3535 |
| Fork Height, Lowered | mm | 90 |
| Overall Length | mm | 1690 |
| Fork Size (L×W×T) | mm | 60×150×1070 |
| Fork Outside Width (Adjustable) | mm | 560 / 680 |
| Ground Clearance (Under Mast) | mm | 25 |
| Aisle Width for Pallets 1200×1000mm | mm | 2215 |
| Aisle Width for Pallets 800×1200mm | mm | 2015 |
| Turning Radius | mm | 1363 |
| Travel Speed, Laden / Unladen | km/h | 3.5 / 4 |
| Lifting Speed, Laden / Unladen | mm/s | 65 / 90 |
| Gradient, Laden / Unladen | % | 3/10 |
| Drive Motor Power | kW | 0.75 |
| Lift Motor Power | kW | 2.2 |
| Battery Voltage / Capacity | V/Ah | 24V / 65Ah |
| Drive Control Type | DC | |
| Noise Level (at Operator’s Ear) | dB(A) | <70 |
