| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | Sinolift |
| Certification: | CE |
| Numéro de modèle: | SFH22AG |
| Quantité de commande min: | 1 ensemble |
| Prix: | Négociable |
| Détails d'emballage: | Paquet d'exportation de Sandard |
| Délai de livraison: | 15 jours |
| Conditions de paiement: | T/T, LC, D/A, D/P, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 1000 ensembles/bouche |

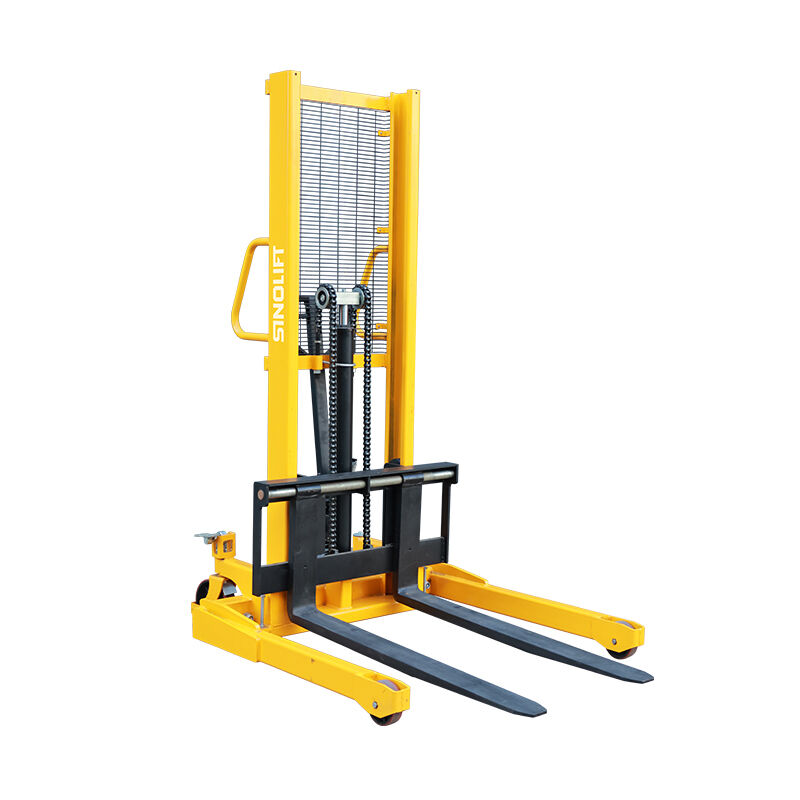

| Nom du produit: | SINOLIFT SFH22AG Gerbeur hydraulique manuel avec pieds chevauchants réglables | Application: | Industriel |
|---|---|---|---|
| Garantie: | 1 an | Service après-vente: | Service en ligne, pièces de rechange |
Flexible Manual Stacking Solution for Various Pallet Sizes
Loading, unloading, transporting, and stacking palletized goods.
Material movement between production areas and storage locations.
Handling inventory and replenishing storage racks.
Efficient pallet transportation and order preparation.
Moving equipment, spare parts, and heavy materials safely.
The adjustable leg design allows the stacker to handle different pallet widths and adapt to various storage and handling environments, providing greater operational flexibility.
No. The stacker operates entirely through a manual hydraulic lifting system, eliminating the need for batteries or external power sources.
The adjustable forks and straddle legs allow the SFH22AG to accommodate a variety of pallet sizes commonly used in warehouses and manufacturing facilities.
Yes. The SFH22AG is designed for routine pallet lifting, transporting, and stacking tasks in warehouses, workshops, and logistics centers.
Manual stackers offer lower purchase costs, reduced maintenance requirements, simple operation, and excellent reliability for light- to medium-duty handling tasks.
Yes. The ergonomic design enables safe and efficient operation by a single operator.
The stacker can be equipped with nylon or polyurethane wheels depending on floor conditions and operational requirements.
The stacker is widely used in warehousing, logistics, manufacturing, retail distribution, maintenance workshops, and industrial facilities.
| Model | SFH1016AG | SFH1025AG | SFH1030AG |
|---|---|---|---|
| Load Capacity (kg) | 1000 | 1000 | 1000 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Max Lifting Height (mm) | 1600 | 2500 | 3000 |
| Mast Type | 1 | 2 | 2 |
| Lowered Height (mm) | 70 | 70 | 70 |
| Fork Length (mm) | 920 | 920 | 920 |
| Single Fork Width (mm) | 100 | 100 | 100 |
| Adjustable Fork Width (mm) | 215–850 | 215–850 | 215–850 |
| Inner Leg Width (mm) | 915–1220 | 915–1220 | 915–1220 |
| Outer Leg Width (mm) | 1090–1370 | 1090–1370 | 1090–1370 |
| Overall Length (mm) | 1420 | 1420 | 1420 |
| Overall Width (mm) | 1370 | 1370 | 1370 |
| Overall Height (mm) | 2020 | 1770 | 2020 |
| Front Wheels (mm) | Ø125×50 | Ø125×50 | Ø125×50 |
| Rear Wheels (mm) | Ø180×50 | Ø180×50 | Ø180×50 |
| Net Weight (kg) | 320 | 360 | 386 |
